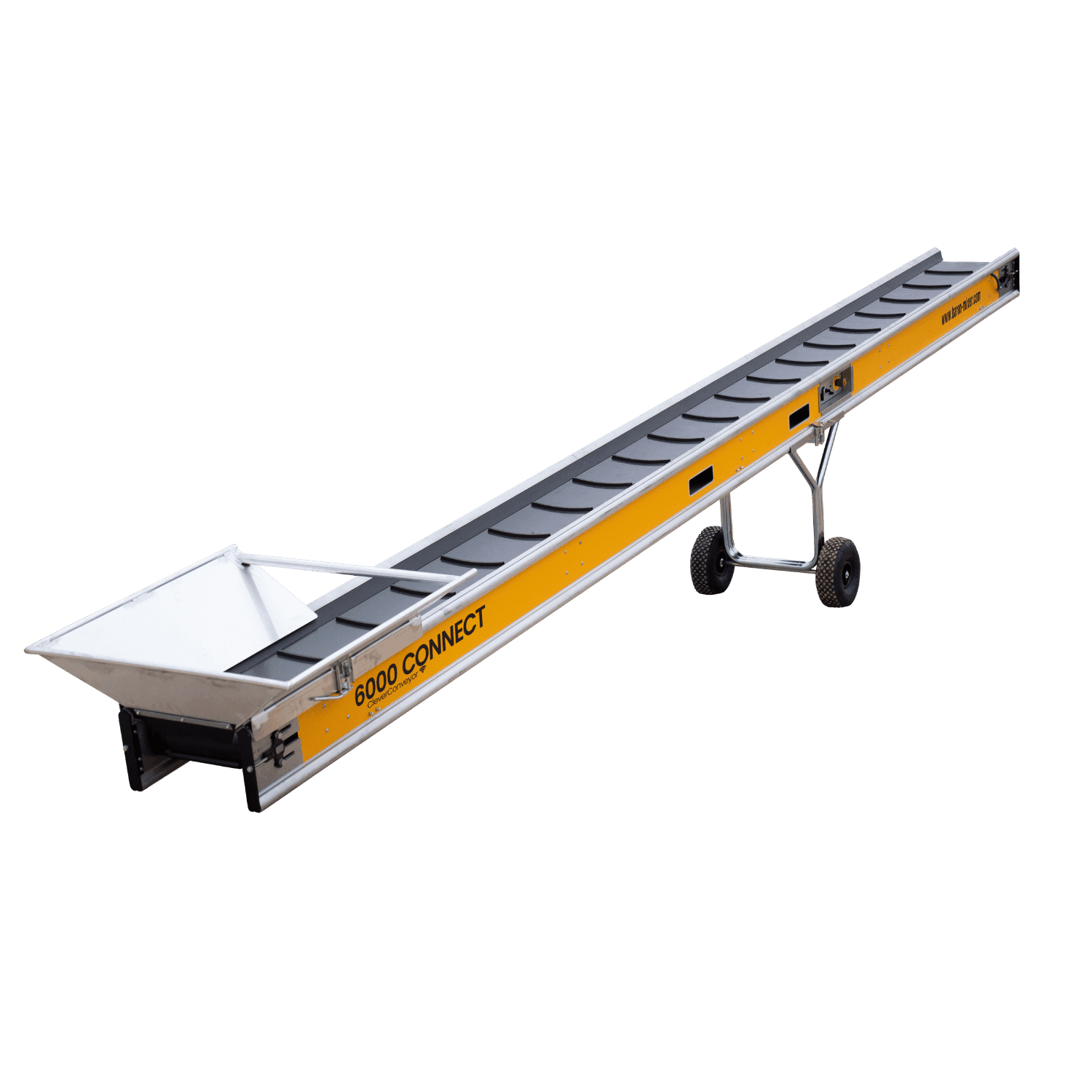

6000 CONNECT CleverConveyor conveyor - 1x240V
Discontinued

6000 CONNECT CleverConveyor conveyor - 1x240V

Art. no.: 35507

Change direction, adjust speed and connect multiple conveyors seamlessly with the new CONNECT conveyor from BARON. Built for the toughest challenges, it handles everything from heavy demolition and wet mortar to soil transport with ease. Thanks to its closed side profile, the CONNECT offers outstanding load capacity while ensuring top-level safety on every job.

The conveyor is shown with the feeding box and undercarriage, which must be bought separately.

Remember to order a cable as well, when you order a conveyor (look under accessories):

  • Cable for series connection: CONNECT connection cable 7 m - part No. 30082


Please note that the cable with part No. 50104 is only compatible with a Danish plug.

The belts on the conveyors can also be made with cleats of different heights or shapes. Contact us to hear your options.

With the CleverConveyor, you have the opportunity to add a subscription to the Dashboard, which is where you can see the features, the CleverConveyor has access to. Here, you can monitor your portable conveyor on everything from placement, operating status, and when spare parts need to be changed. 1st year subscription free of charge. After that, it costs EUR 100 per year.

Motor550 WATT
Current1x240V
Belt speed (cm/s)20-80
Working independentlyN/A
Series connectionYes
Max. pullpower441 lbs / 200 kg
Belt Length130 in / 600 cm
Belt Width13 in / 34 cm
Weight227 lbs / 103 kg
Height10 in / 25 cm
Width18 in / 46 cm
Length248 in / 630 cm
Standard carrier on belt0.4700 / 12.0000
Variable belt speed7.87 to 31.49 in/s / 20 to 80 cm/s
Engine3x240V 0.55kW / 3-phased 0.55kW
Download manual
Danish innovation

Innovative products of the highest quality for professionals

No Compromise

No compromise with quality, safety, efficiency, and ergonomics

Accessibility

Our products are sold and used in more than 53 countries worldwide

Market-leading

For over 23 years, Baron has delivered professional tools and machines for the construction industry

Let us tell you more

Find spare parts

Click to find out more
1
30216
Insert plate w/bolt f/drum, right
2
30217
Insert plate w/bolt f/drum, left
3
30222
Adjusting bracket drum, right
4
30223
Adjusting bracket drum, left
5
30221
Adjusting bracket motor, left
6
30218
Insert plate w/bolt f/motor, right
7
30219
Insert plate w/bolt f/motor, right
8
30220
Adjusting bracket motor, right
9
30215
Belt guide complete (1 set)
10
31013
PVC belt 6000
11
31001
Bottom plate 1710 mm
12
31043
Top profile 2500 mm
13
31014
PVC side protection, 1 m
14
30245
Insert for control box, right (80 mm)
15
31027
Left side profile CXL 6000
16
31023
Right side profile 6000
17
31051
Drum
18
31052
Motor incl. plug
19
30246
Insert for control box, left (145 mm)
20
32206
CONNECT control box 240V
20
32207
CONNECT control box 240V - CleverConveyor
21
31059
Connection piece fork protection
22
31008
Bottom plate 2135 mm with holes
23
31002
Bottom plate 1900 mm
25
31060
Cross member
26
31040
Top profile 1300 mm, right
26
31041
Top profile 1300 mm, left
30213
Catch for undercarriage and for hopper
30232
Changeover forwards/backwards switch
30250
Frictionband for engine
30258
CONNECT Emergency stop, complete
30259
CONNECT Potentiometer/speed controle, complete
30260
CONNECT plug IN
30261
CONNECT plug OUT
30262
CONNECT Miniature fuse 63mA
32003
PVC belt 6000, no cleats
32007
PVC belt 6000 20 mm, cleats
32011
PVC belt 6000 40 mm, cleats
32015
PVC belt 6000 60 mm, cleats
32019
PVC belt 6000 20 mm, V-chevron cleats
32023
PVC belt 6000 60 mm, wavy edge cleats
