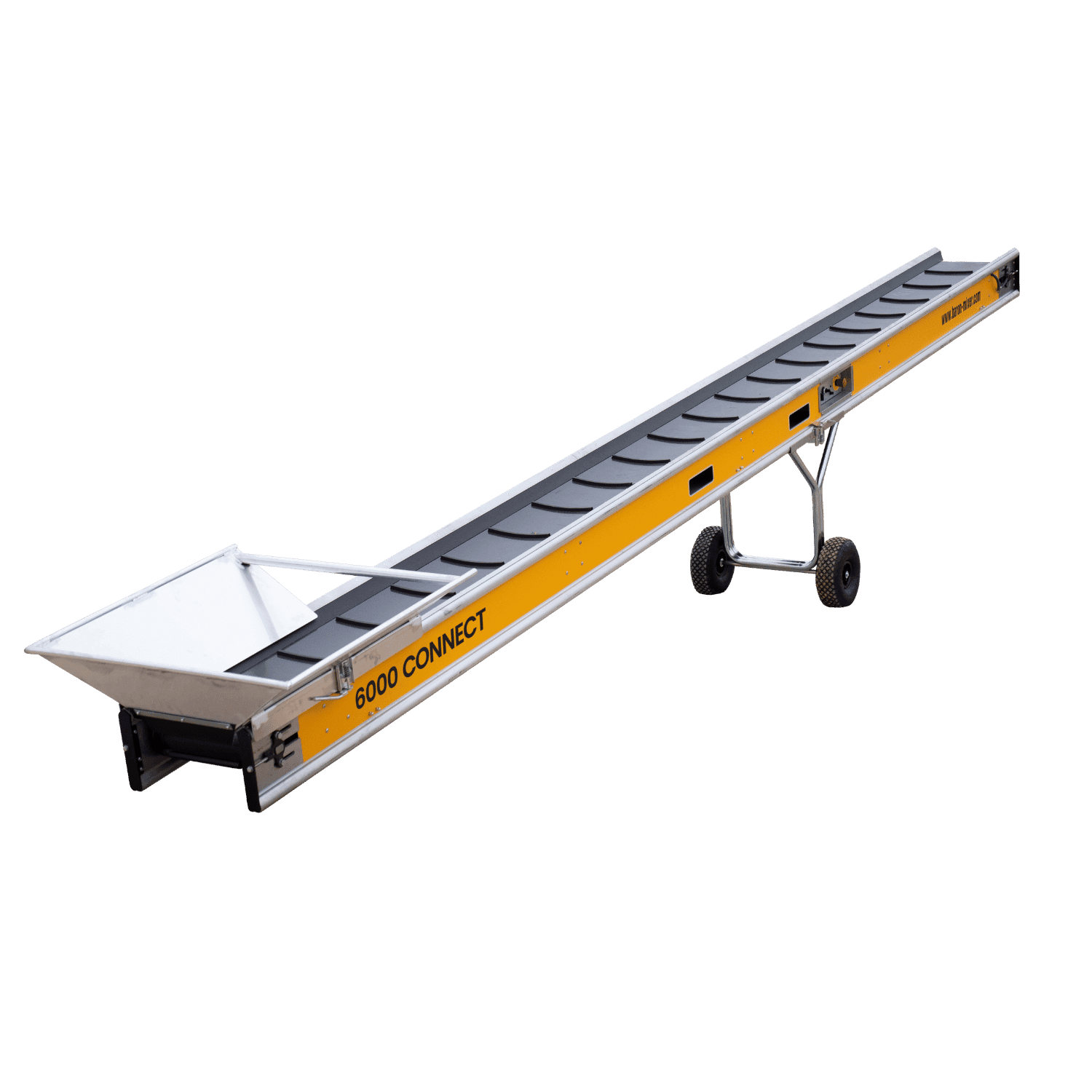

6000 CONNECT conveyor - 1x240V

Part no. 35007

Change direction, adjust speed and connect multiple conveyors seamlessly with the new CONNECT conveyor from BARON. Built for the toughest challenges, it handles everything from heavy demolition and wet mortar to soil transport with ease. Thanks to its closed side profile, the CONNECT offers outstanding load capacity while ensuring top-level safety on every job.

The CONNECT series is Baron’s new line of conveyors featuring an intelligent control box that allows you to choose whether the conveyor runs independently or acts as a ‘MASTER’ or ‘SLAVE’ in a series connection of up to 4 units.

With the new control box, you only need a CONNECT series cable (part no. 30082) to transfer both power and control to the next conveyor.

The conveyor is shown with a hopper and undercarriage, which must be purchased separately.

Also remember to order the appropriate cable when purchasing a conveyor (see accessories):

Cable: Adapter cable 1 m with CEE and DK plug – part no. 50104
Cable for series connection: CONNECT series cable 7 m – Item no. 30082

Please note that the cable with part no. 50105 cannot be used with a Danish plug.

The conveyor belts can also be ordered with different cleat heights or designs. Contact us to learn more about your options.

Excl. VAT

Accessories

Undercarriage for Conveyor

Hopper for conveyor

Support Legs for Conveyor

Extension to hopper

CONNECT cable for serial connection, 7 m

Adapter cable 240V 10A 1m CEE/DK plug

Adapter cable 240V 10A 1m CEE/Schuko plug

Specifications

Length	630 cm
Motor	550 watt
Width	45 cm
Engine	3x240V 0.55kW
Height	25 cm
Weight	103 kg
Current	1x240V
Belt speed (cm/s)	20-80
Belt Width	34 cm
Belt Length	600 cm
Max. pullpower	200 kg
workindependent	Yes
Series connection	Yes
Standard carrier on belt	12.0000
Variable belt speed	20 to 80 cm/s

Product manual Find spare parts
