2500 CONNECT CleverConveyor conveyor - 1x240V
Discontinued

2500 CONNECT CleverConveyor conveyor - 1x240V

Art. no.: 35504

Change direction, adjust speed and connect multiple conveyors seamlessly with the new CONNECT conveyor from BARON. Built for the toughest challenges, it handles everything from heavy demolition and wet mortar to soil transport with ease. Thanks to its closed side profile, the CONNECT offers outstanding load capacity while ensuring top-level safety on every job.

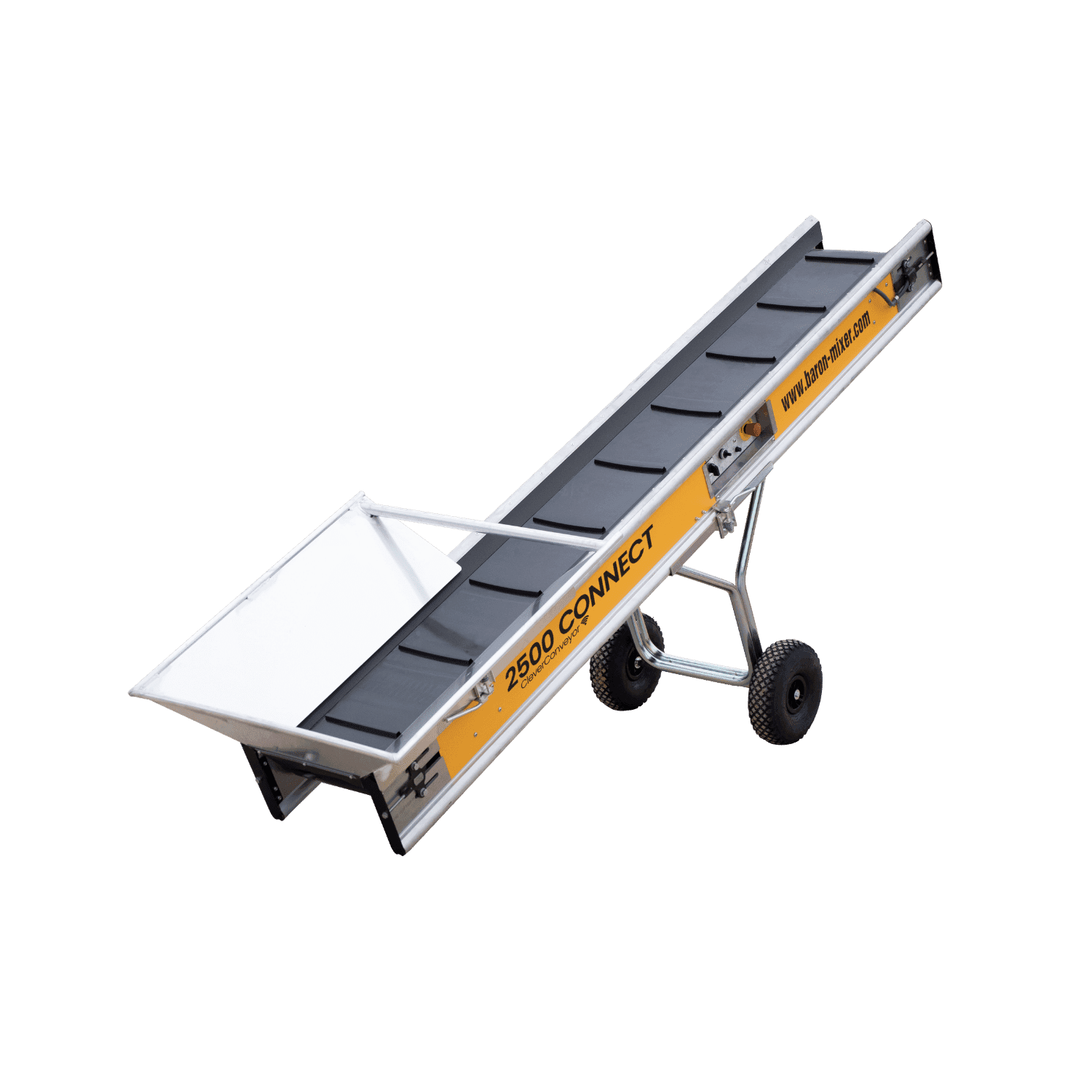

The conveyor is shown with the feeding box and undercarriage, which must be bought separately.

Remember to order a cable as well, when you order a conveyor (look under accessories):

  • Cable for series connection: CONNECT connection cable 7 m - part No. 30082


Please note that the cable with part No. 50104 is only compatible with a Danish plug.

The belts on the conveyors can also be made with cleats of different heights or shapes. Contact us to hear your options.

With the CleverConveyor, you have the opportunity to add a subscription to the Dashboard, which is where you can see the features, the CleverConveyor has access to. Here, you can monitor your portable conveyor on everything from placement, operating status, and when spare parts need to be changed. 1st year subscription free of charge. After that, it costs EUR 100 per year.

Motor550 WATT
Current1x240V
Belt speed (cm/s)20-80
Working independentlyN/A
Series connectionYes
Max. pullpower441 lbs / 200 kg
Belt Length98 in / 250 cm
Belt Width13 in / 34 cm
Weight134 lbs / 61 kg
Height10 in / 25 cm
Width18 in / 46 cm
Length110 in / 280 cm
Standard carrier on belt4.7200 / 12.0000
Variable belt speed7.87 to 31.45 in/s / 20 to 80 cm/s
Engine3x240V 0.55kW / 3-phased 0.55kW
Download manual
Danish innovation

Innovative products of the highest quality for professionals

No Compromise

No compromise with quality, safety, efficiency, and ergonomics

Accessibility

Our products are sold and used in more than 53 countries worldwide

Market-leading

For over 23 years, Baron has delivered professional tools and machines for the construction industry

Let us tell you more

Find spare parts

Click to find out more
1
30216
Insert plate w/bolt f/drum, right
2
30217
Insert plate w/bolt f/drum, left
3
30222
Adjusting bracket drum, right
4
30223
Adjusting bracket drum, left
5
30221
Adjusting bracket motor, left
6
30218
Insert plate w/bolt f/motor, right
7
30219
Insert plate w/bolt f/motor, right
8
30220
Adjusting bracket motor, right
9
30215
Belt guide complete (1 set)
10
31010
PVC belt 2500
11
31005
Bottom plate 2277 mm with holes and double bend
12
31043
Top profile 2500 mm
13
31014
PVC side protection, 1 m
14
30245
Insert for control box, right (80 mm)
15
31024
Left side profile CXL 2500
16
31020
Right side profile 2500
17
31051
Drum
18
31052
Motor incl. plug
18
50340
Rubber wheel 20x75 (1 pc)
20
32206
CONNECT control box 240V
20
32207
CONNECT control box 240V - CleverConveyor
21
31039
Top profile 305 mm
25
31060
Cross member
30082
CONNECT cable for serial connection, 7 m
30213
Catch for undercarriage and for hopper
30250
Frictionband for engine
30258
CONNECT Emergency stop, complete
30259
CONNECT Potentiometer/speed controle, complete
30260
CONNECT plug IN
30261
CONNECT plug OUT
30262
CONNECT Miniature fuse 63mA
31050
Motor 135P 3x240V 0.55kW 0.6m/s
50104
Adapter cable 240V 10A 1 m CEE/DK plug
50105
Adapter cable 240V 10A 1 m CEE/Schuko plug
