SmartMover

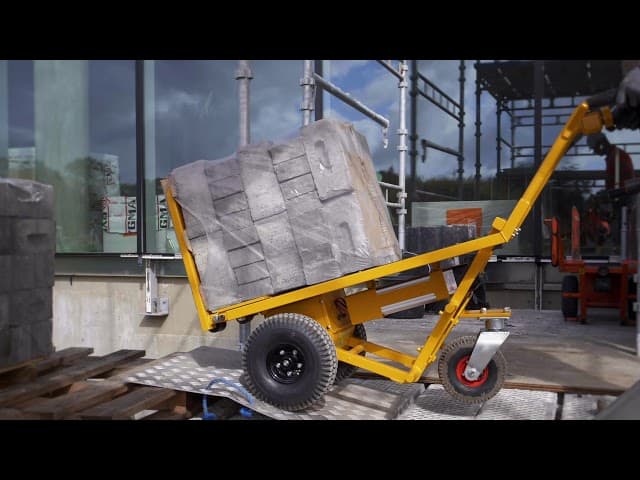

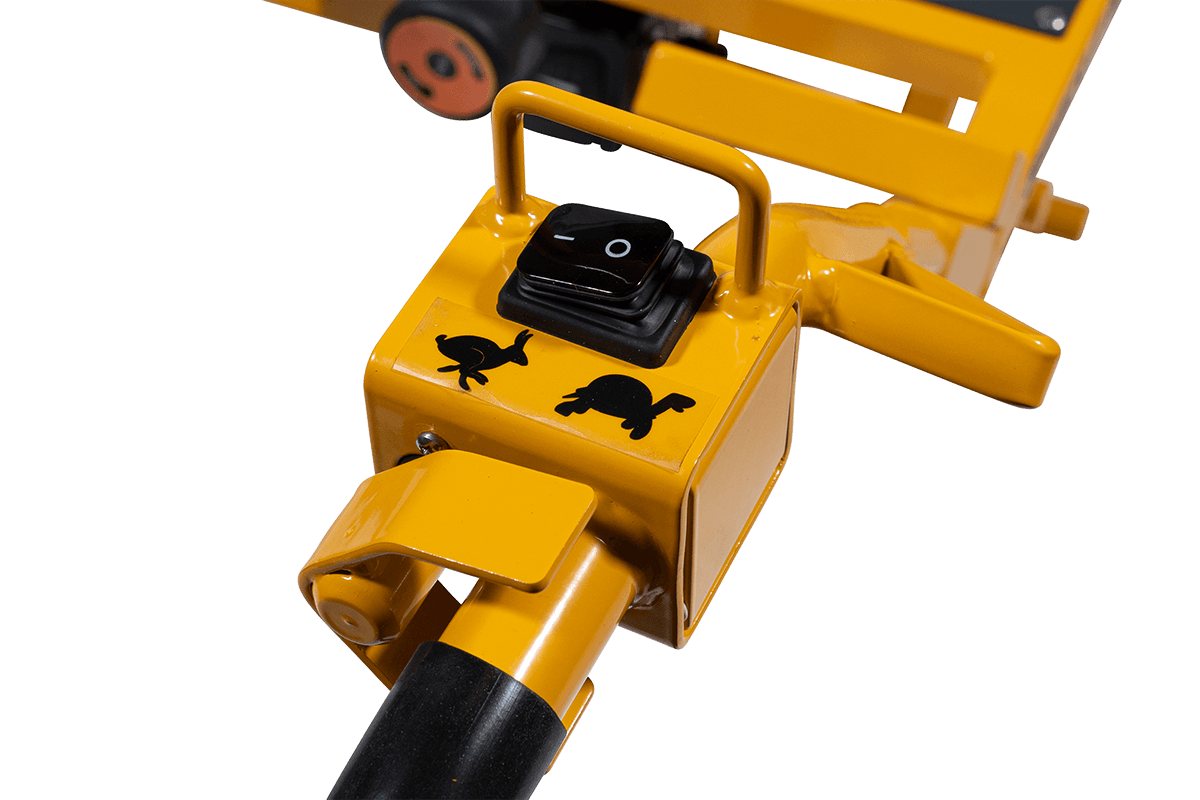

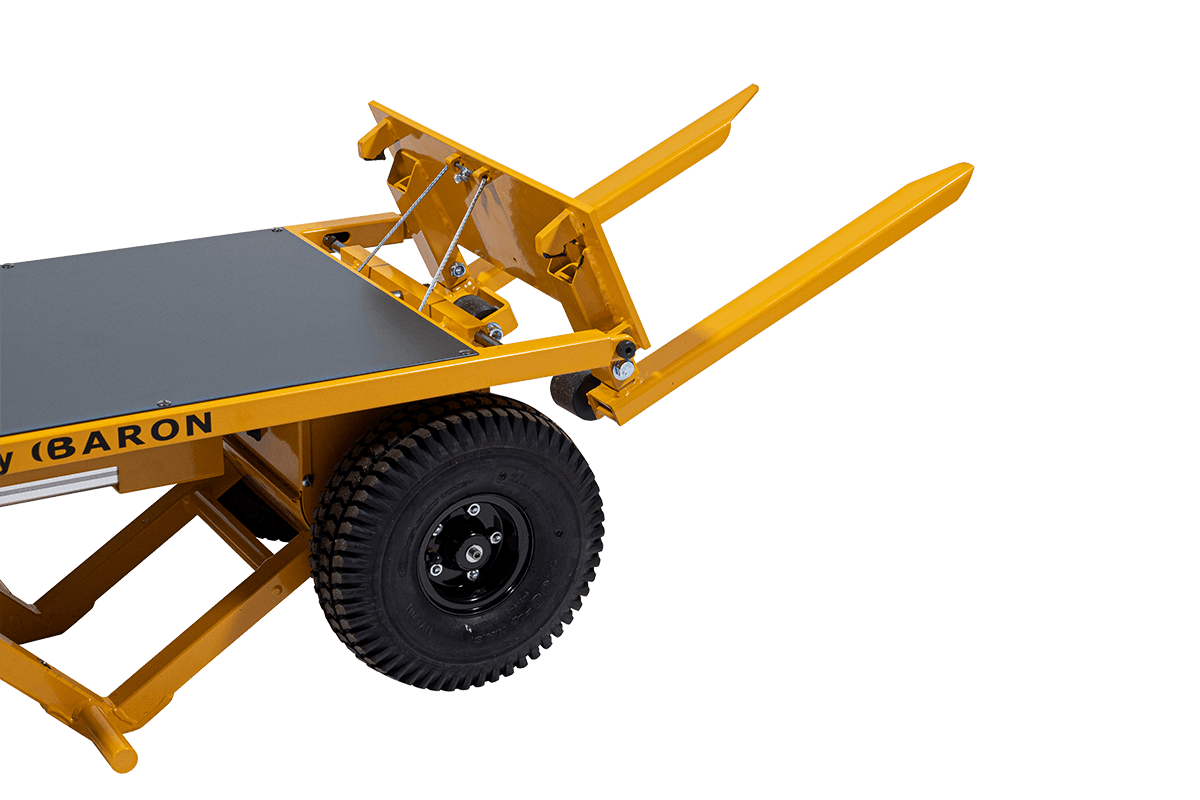

The SmartMover by Baron is an electric brick trolley and your new best friend, taking the strain out of heavy lifting and nasty twists and pulls. It is easy to navigate around construction sites even in narrow spaces. Guard bars on the handles protect your hands. The SmartMover copes well with slopes of up to 20 per cent (equivalent to 20 cm per running metre) and loads of up to 280 kg. SmartMover by Baron is manufactured in the EU.

Do you need to order a new charger? Find the right type by clicking: here

Motor400 WATT
Current25V / 20mAh
Degree of inclination20 °
Battery Capacity20 MILLIAMPEREHOUR
Load Capacity617 lbs
Weight139 lbs
Height30 in
Width25 in
Length59 in

1
20300
Shaft for lock
2
20301
Nylon roll Ø50x50 mm
3
20302
Rivet Ø16x38 mm
4
20303
Bushing Ø16x12 mm
4
90109
Fitting bolt INDV.6-KT 12.9 12x6 M10 thread
5
20304
Frame
6
20305
Rotate plate
7
20306
Lock
8
20307
Frame fixation
9
20308
Suspension 1
10
20309
Suspension 2
11
20310
Fork - right
12
20311
Fork - left
13
20312
Motor cover
14
20318
Inspection hole
15
20313
Front plate, small
16
20314
Front plate, large
17
20315
Toogle switch
18
20316
Operation shutter
19
20317
Battery storage
20
20382
Adjustment grip
21
20383
Motor management
22
20384
Throttle speed forwards/backwards
23
20385
0-1 Switch. V-switch
24
20386
Wheel
25
20391
Pressure spring Ø20.9 mm
26
20392
Pressure spring 12.5 mm
27
20394
Stopring Ø10/20x10
28
20395
Stopring Ø15/25x12
29
20396
Rubber bushing
30
20117
Li-ion battery 24V 20 AH
31
20399
Battery bottom, plug
32
20400
Battery bottom, socket
33
20401
Stainless steel Ø12x120 mm
34
20381
Gearmotor DC 24V incl brake
20112
Wiring for frame, complete
20114
Adjustment string
20119
Charger, complete - jack plug (find an overview above)
20120
SmartMover roofer module grid site - right
20121
SmartMover roofer module grid site - left
20122
Charger, complete - DX battery (find an overview above)
20124
Key for battery
20130
Brake for motor
20132
Charger, complete - plug w/3 legs (find an overview above)
20282
Complete fork, right
20283
Complete fork, left
20390
Rubber hose silicon
20403
Circuit board for battery
20404
Charger plug - with 3 legs
20405
Battery top, complete
20407
Wheel for support wheel
20408
Hairpin split
20409
Charger plug - jack plug
20420
Fork for support wheel
20507
Label - trouble shooting
20508
Label - orange handle
20509
Label - lifting
20510
Label - high/low speed
20511

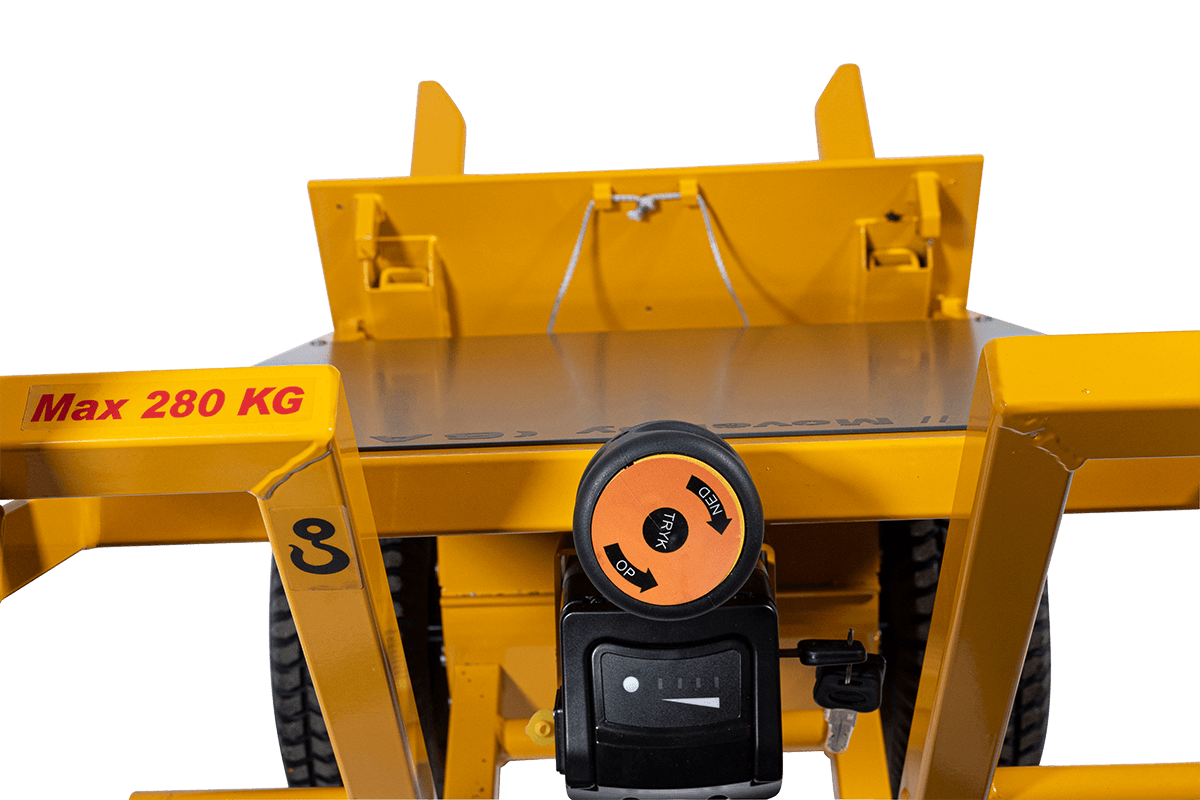

Label - max 280 kg
20513
Label - top of battery
