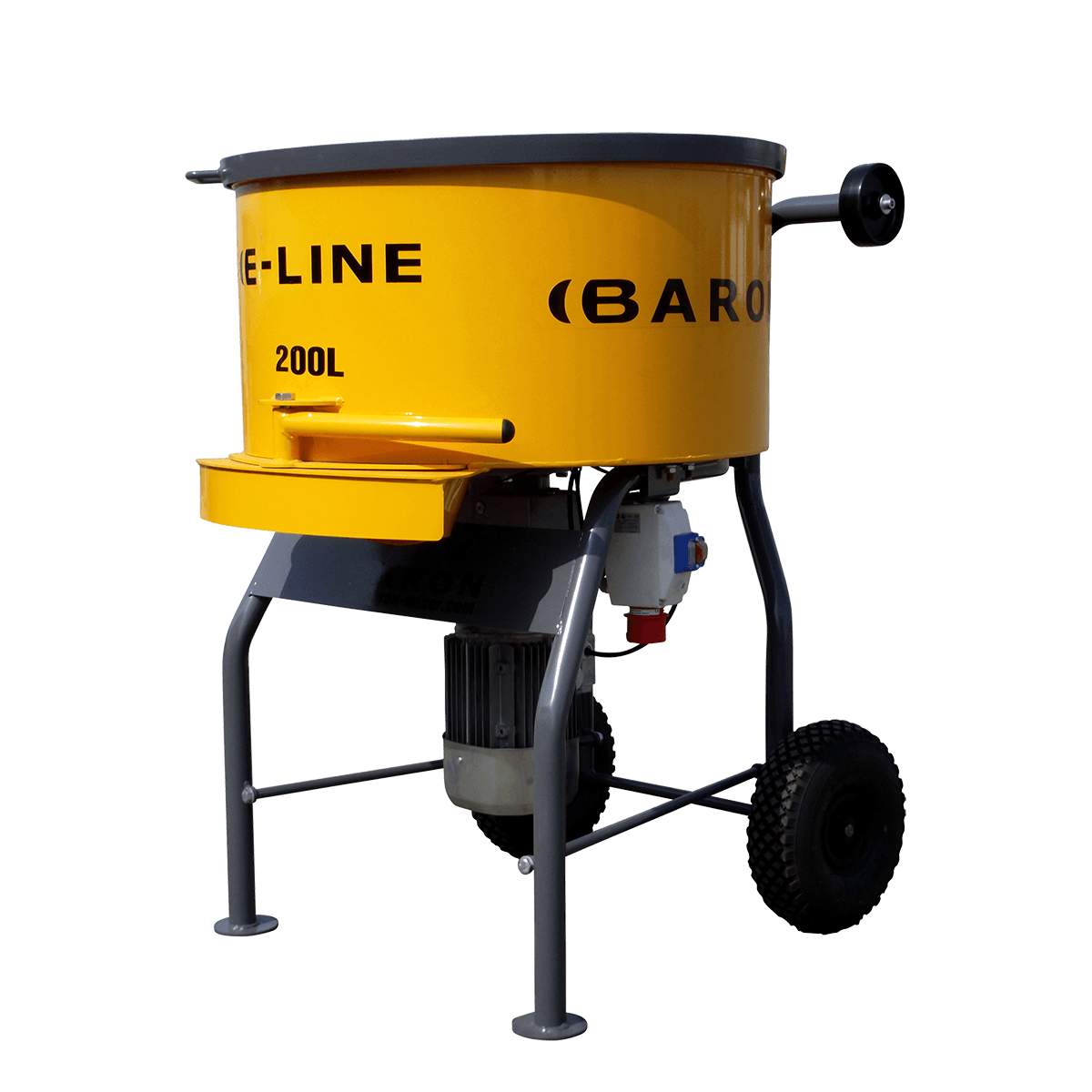

E200 Forced action mixer

Dust cover (lid)

Dust cover (lid)

1

50641

Sack knife, complete

2

50541

E200 cover

3

50426

E200/M200 mixer head (without blades)

4

50441

Metal blades E200/M200, complete set (4 pcs)*

8

50652

Drive shaft, complete

9

50503

E200 container

10

50375

E200/F200 trapdoor, complete

11

50351

E200 outlet protection

12

50328

Positioning bolt

13

50343

Transport wheel, complete (1 pc)

16

50529

E200 front frame

16

50530

E200 back frame

17

50302

Main switch 380V, 6-10A

18

50340

Rubber wheel 20x75 (1 pc)

19

50327

Rubber damper

20

50601

E90/E120/E200 plate for cover switch

21

50326

Mechanical cover switch

23

50203

Motor + gear, 3.5kW 3x380V, Fabrika

30

50572

Connection bar (1 pc)

30300

Rubber protection f/on-off

50106

Extension cable, 3x380V CEE 10 m

50108

Extension cable CEE 3x380V 5 m

50206

Motor + gear, 3.5kW 3x380V - Motovario

50223

Motor, 1.8kW 110V

50224

Motor, 3.5kW 3x380V, Fabrika

50231

Gear, 2.2/1,8kW, Fabrika

50263

Motor protection 20-25A

50270

Undervoltage relais, 110V

50271

Undervoltage relais, 240V

50272

Undervoltage relais, 380V

50305

Main switch, 110V 20-25A M/E/F200

50323

Emergency stop, yellow - complete, old model mixer

50324

E-stop lid for main switch

50464

Rubber blades, complete set (4 pcs)

50628

Filling cap for dust cover

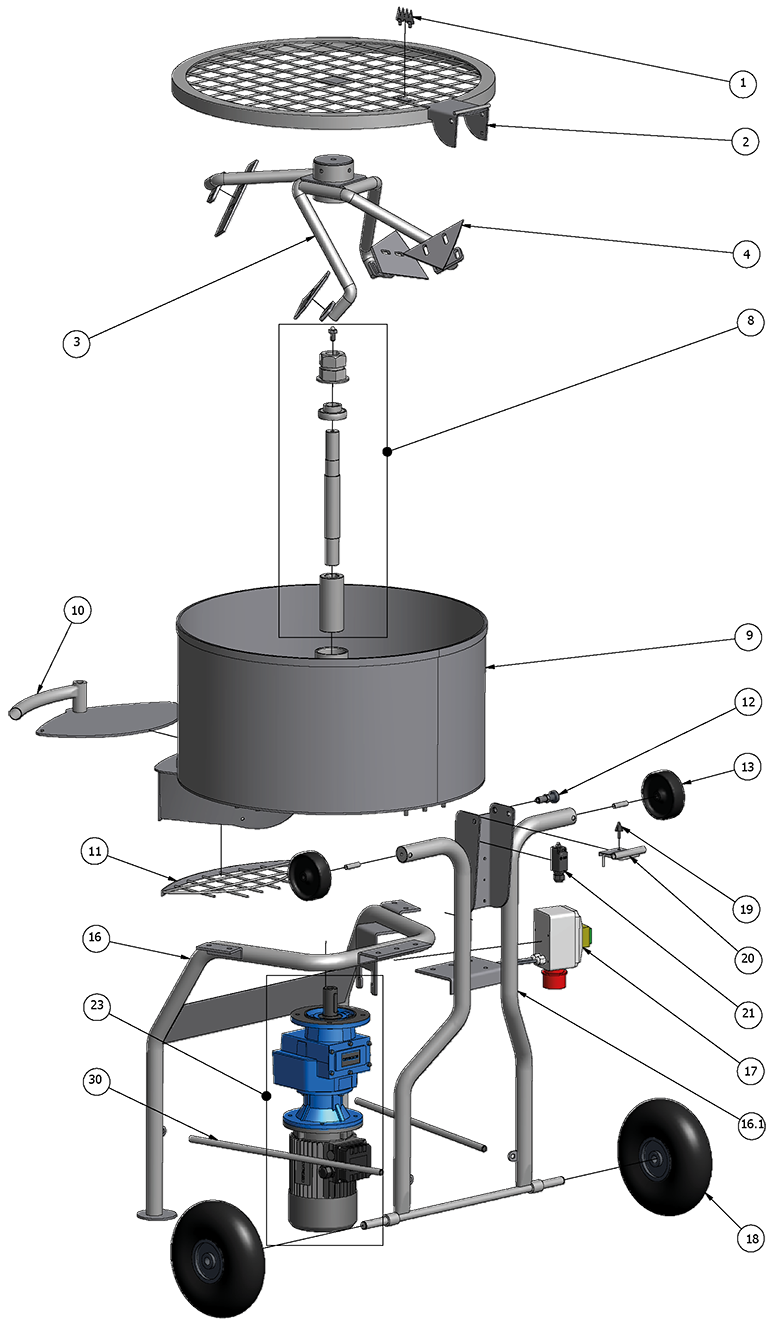

Eksplosionstegning af produktet
