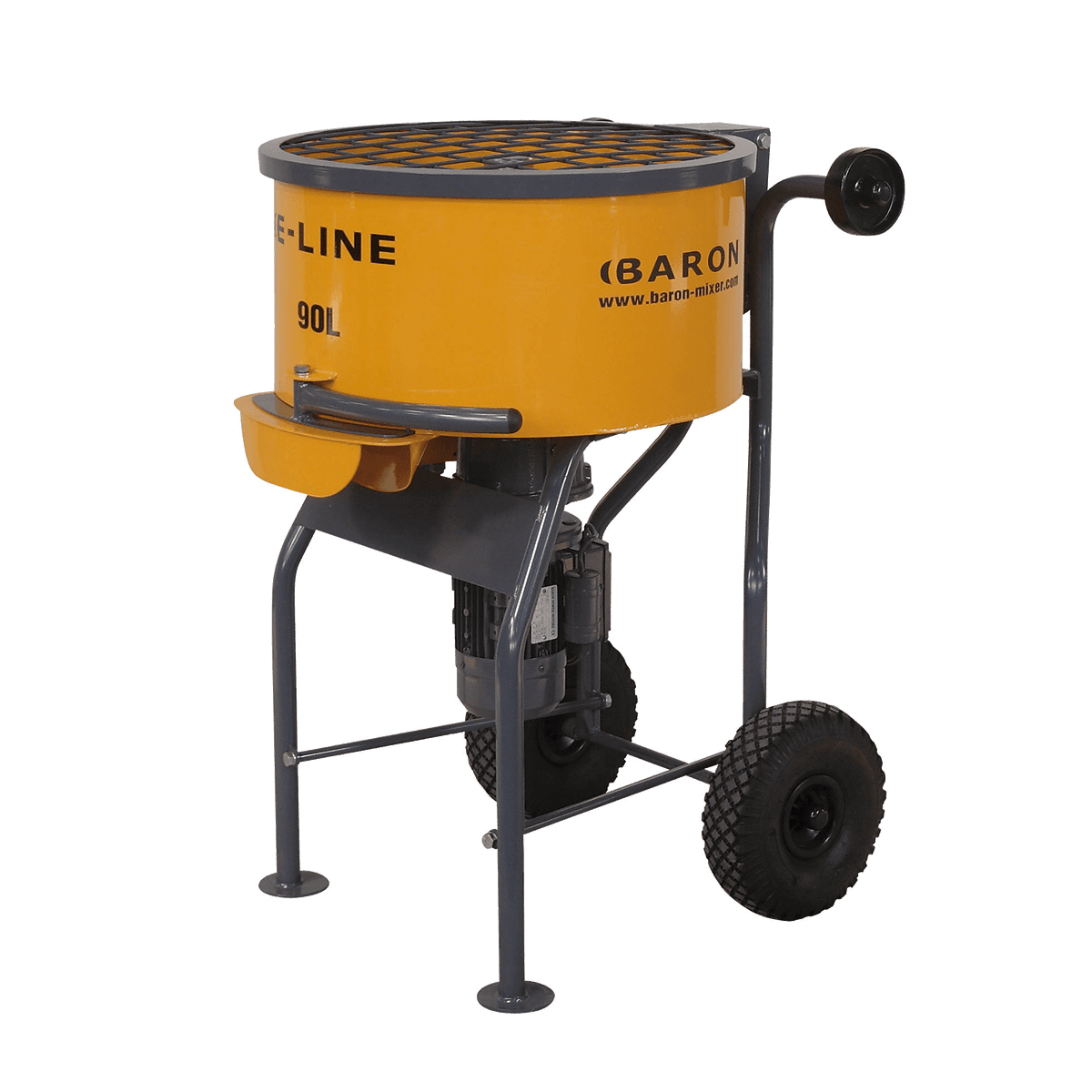

E90 Forced action mixer

1

50641

Sack knife, complete

2

50540

E90/E120 cover

3

50420

E90 mixer head (without blades)

4

50443

Metal blades E90/E120, complete set (3 pcs)

8

50651

E90/M80/M110/F80/F110/F120 drive shaft, complete

9

50500

E90 container

10

50374

E90/E120/F80/F110/F120 trapdoor, complete

11

50350

E90/E120 outlet protection

12

50328

Positioning bolt

13

50343

Transport wheel, complete (1 pc)

16

50526

E90/E120 front frame

16

50527

E90 back frame

17

50300

Main switch 240V, 13,5A

17

50302

Main switch 380V, 6-10A

17

50307

Main switch, 110V 10-16A

18

50340

Rubber wheel 20x75 (1 pc)

19

50327

Rubber damper

20

50601

E90/E120/E200 plate for cover switch

21

50326

Mechanical cover switch

23

50200

Motor + gear, 2.0kW 240V, Fabrika

23

50201

Motor + gear, 2.0kW 110V, Fabrika

30

50571

Connection bar set (2 pcs)

30300

Rubber protection f/on-off

50103

CEE adapter

50104

Adapter cable 240V 10A 1 m CEE/DK plug

50105

Adapter cable 240V 10A 1 m CEE/Schuko plug

50221

Motor, 2.0kW 110V

50222

Motor, 2.0kW 3x380V, Fabrika

50233

Vario speed gear

50260

Main relais, 10-16A

50270

Undervoltage relais, 110V

50271

Undervoltage relais, 240V

50272

Undervoltage relais, 380V

50323

Emergency stop, yellow - complete, old model mixer

50324

E-stop lid for main switch

50460

Rubber blades, complete set (3 pcs)

50613

Bucket support for E90/E120

50620

Dust cover (lid)

50628

Filling cap for dust cover

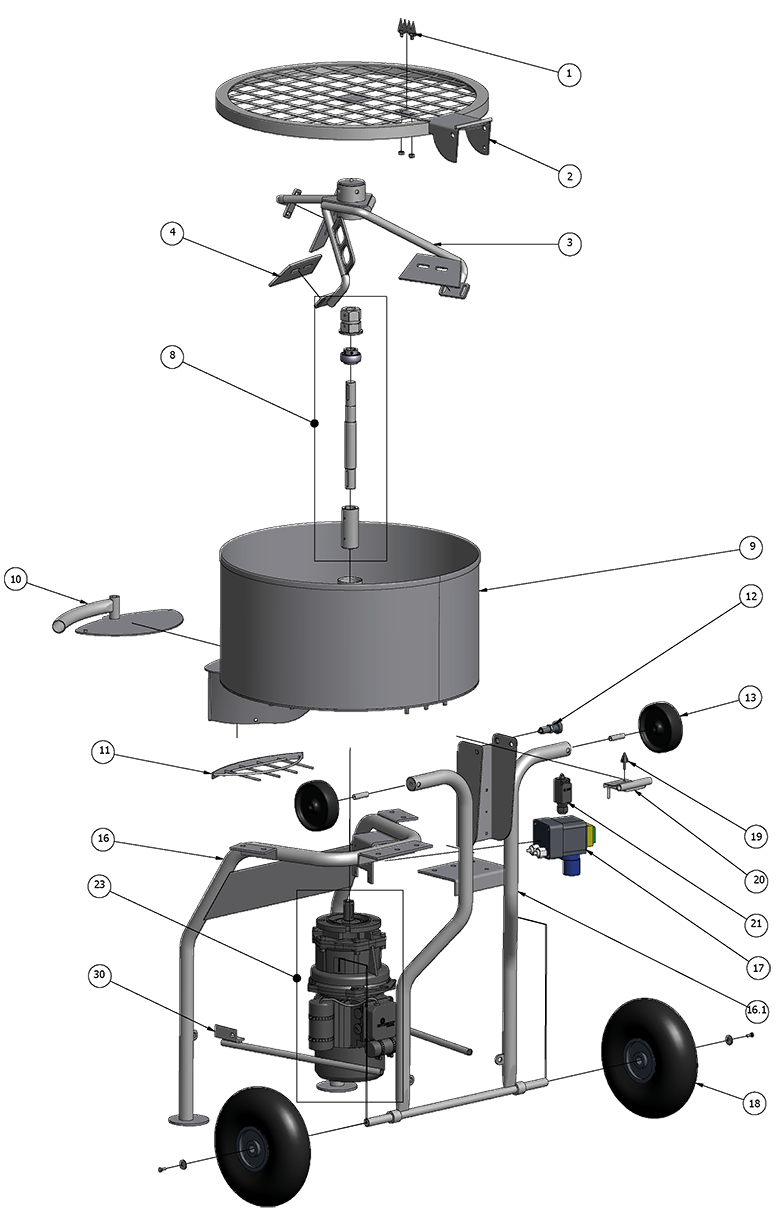

Eksplosionstegning af produktet
