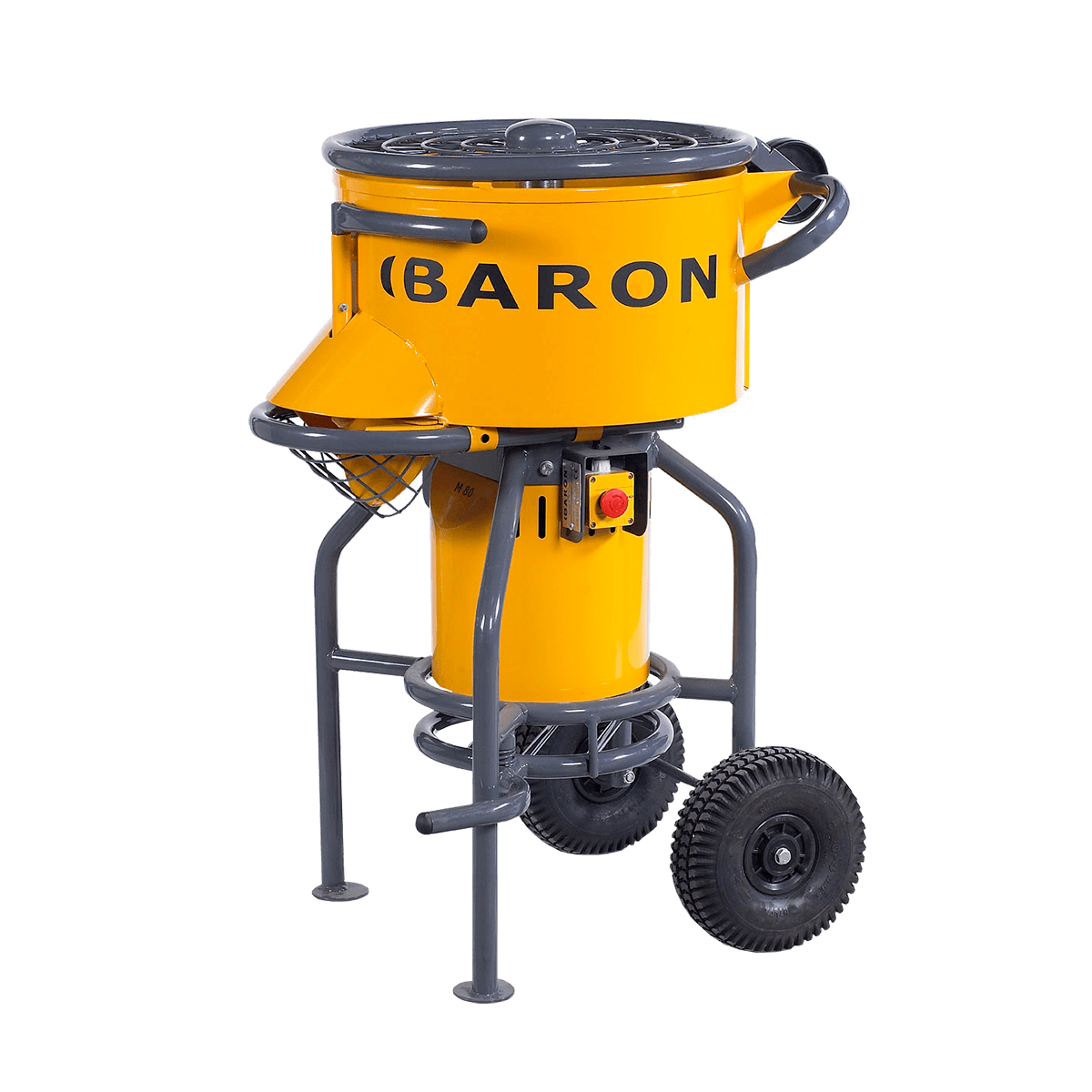

M80 Forced action mixer

1

50641

Sack knife, complete

2

50543

M80 cover

3

50422

M80/F80 mixer head (without blades)

4

50447

Metal blades M80/F80, complete set (4 pcs)

6

50610

M80/M110 bucket support

8

50651

E90/M80/M110/F80/F110/F120 drive shaft, complete

9

50505

M80 container

10

50372

M80/M110 trapdoor

11

50353

M80/M110 outlet protection

12

50328

Positioning bolt

13

50343

Transport wheel, complete (1 pc)

14

50370

M80/M110 trapdoor handle

15

50561

M80/M110 engine cover

16

50520

M80/M110 frame

17

50300

Main switch 240V, 13,5A

17

50302

Main switch 380V, 6-10A

17

50307

Main switch, 110V 10-16A

18

50340

Rubber wheel 20x75 (1 pc)

19

50327

Rubber damper

20

50604

M series - plate for cover switch

21

50326

Mechanical cover switch

23

50200

Motor + gear, 2.0kW 240V, Fabrika

23

50201

Motor + gear, 2.0kW 110V, Fabrika

30300

Rubber protection f/on-off

50103

CEE adapter

50104

Adapter cable 240V 10A 1 m CEE/DK plug

50105

Adapter cable 240V 10A 1 m CEE/Schuko plug

50221

Motor, 2.0kW 110V

50222

Motor, 2.0kW 3x380V, Fabrika

50233

Vario speed gear

50260

Main relais, 10-16A

50270

Undervoltage relais, 110V

50271

Undervoltage relais, 240V

50272

Undervoltage relais, 380V

50323

Emergency stop, yellow - complete, old model mixer

50324

E-stop lid for main switch

50462

Rubber blades, complete set (4 pcs)

50623

Dust cover (lid)

50628

Filling cap for dust cover

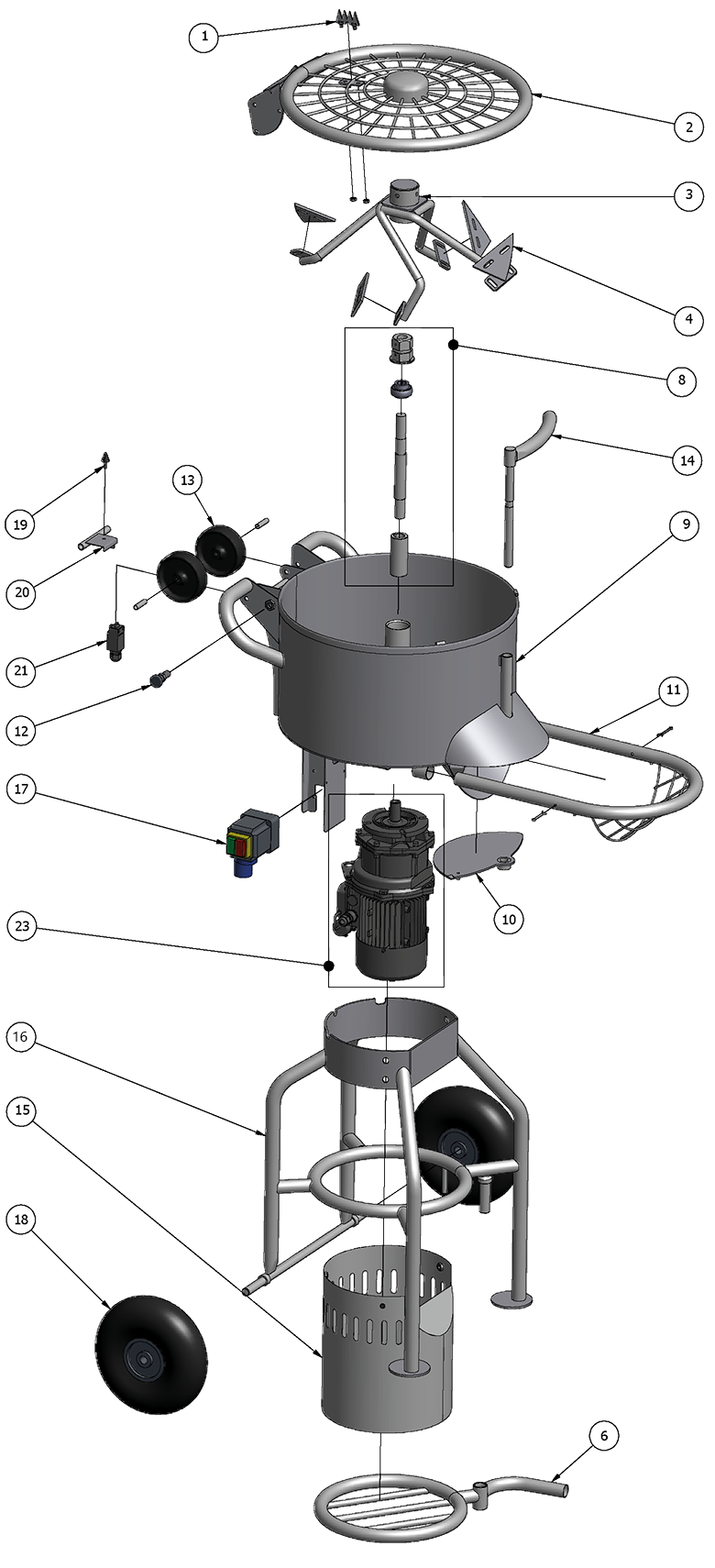

Eksplosionstegning af produktet
