CXL3300
PVC belt 3300

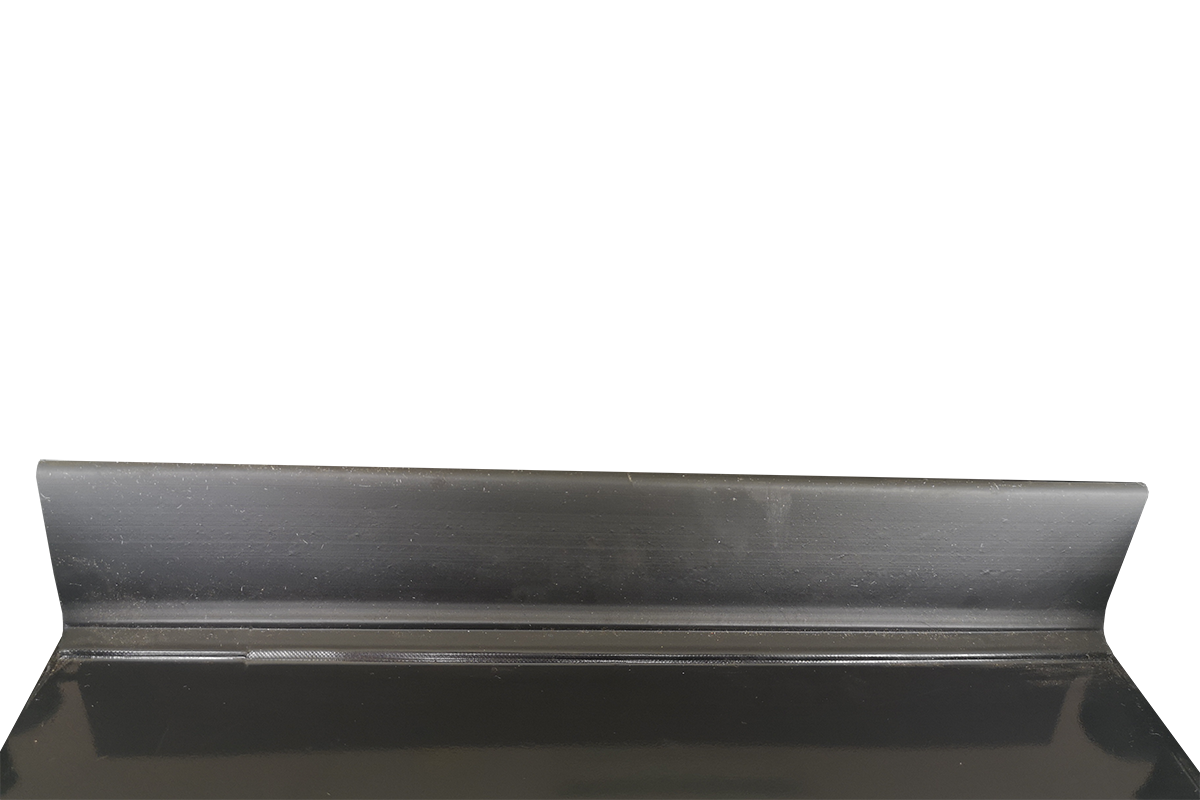

PVC belt 3300 20 mm, cleats

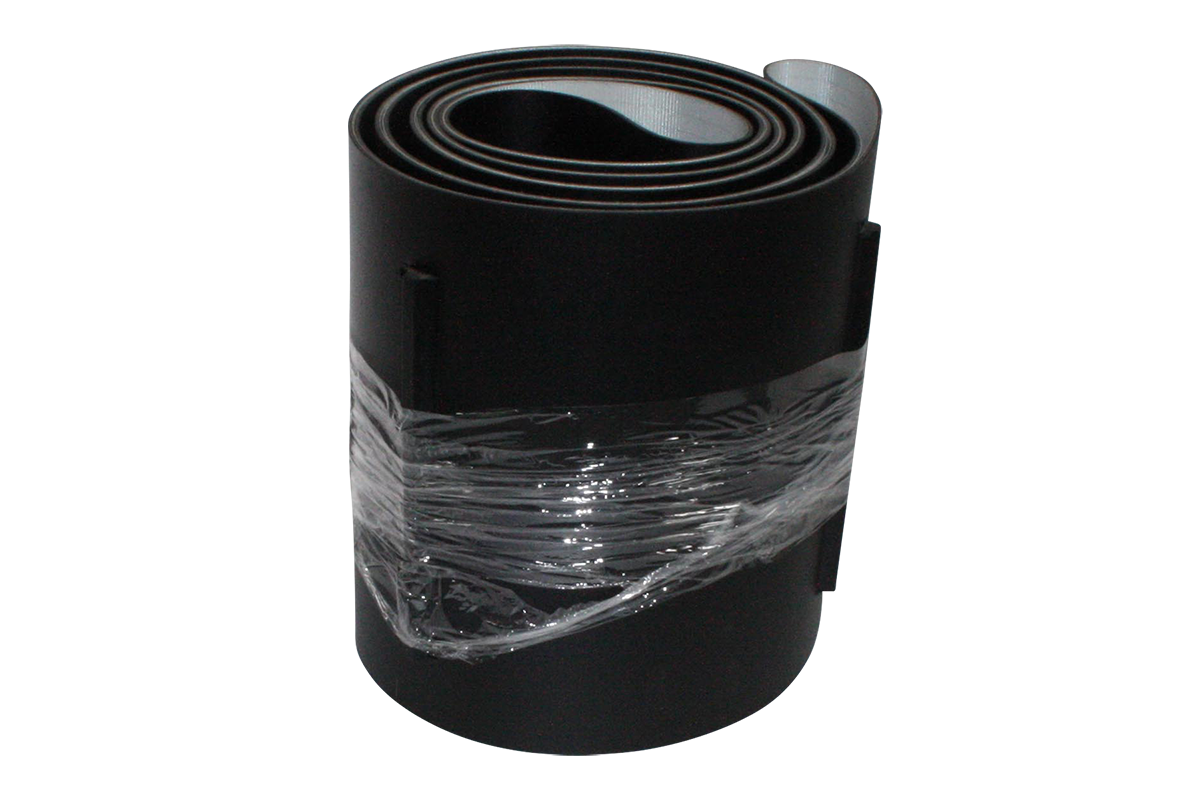

PVC belt 3300 no cleats

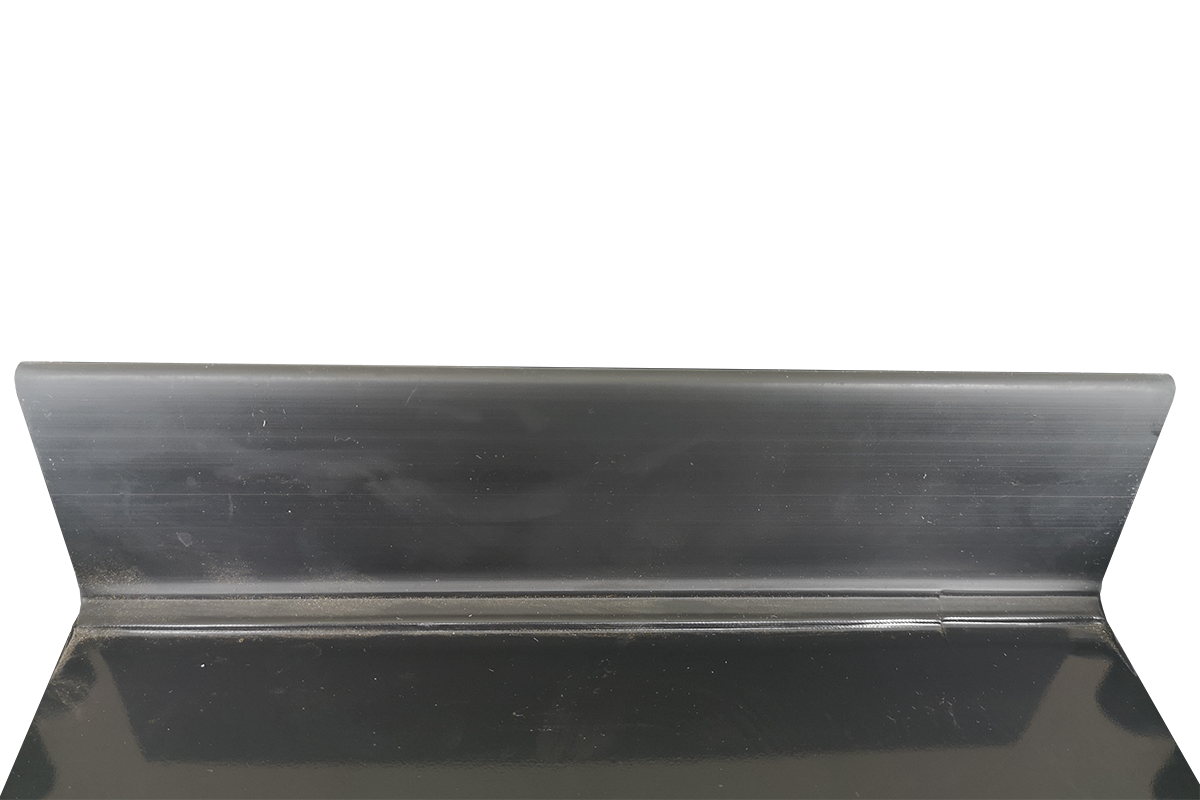

PVC belt 3300 40 mm, cleats
PVC belt 3300 60 mm, cleats

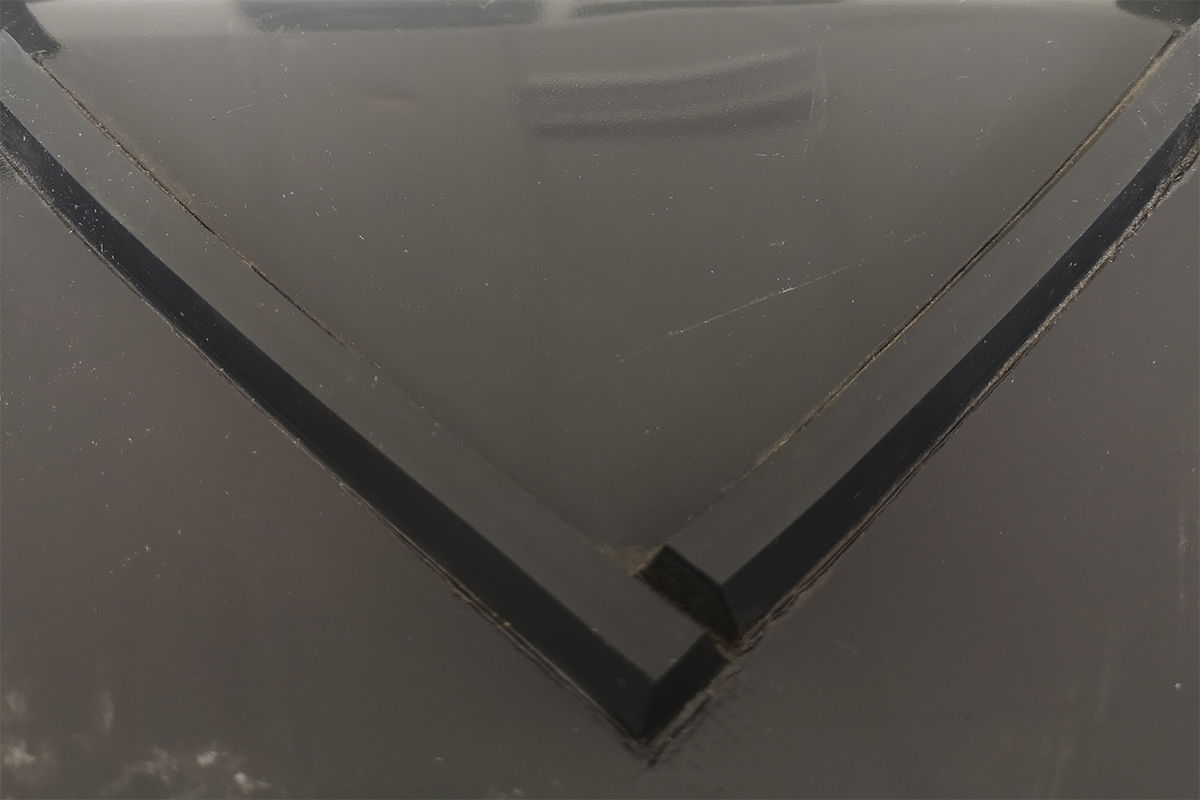

PVC belt 3300 20 mm, V-chevron cleats
PVC belt 3300 40 mm, wavy edge cleats
1
30216
Insert plate w/bolt f/drum, right
2
30217
Insert plate w/bolt f/drum, left
3
30222
Adjusting bracket drum, right
4
30223
Adjusting bracket drum, left
5
30221
Adjusting bracket motor, left
6
30218
Insert plate w/bolt f/motor, right
7
30219
Insert plate w/bolt f/motor, right
8
30220
Adjusting bracket motor, right
9
30207
PVC cover at scrubber, set
11
31004
Bottom plate 945 mm
12
31046
Top profile 1255 mm, right
12
31047
Top profile 1255 mm, left
13
31014
PVC side protection, 1 m
14
30211
Scrubber, complete
15
31025
Left side profile 3300
16
31021
Right side profile 3300
17
31051
Drum
18
50340
Rubber wheel 20x75 (1 pc)
20
30210
E-stop complete white CXL inside mounting
21
30200
Main switch 25μF 240V
22
31008
Bottom plate 2135 mm with holes
23
31044
Top profile 2345 mm
25
31060
Cross member
28
30205
Inlet socket, complete
29
30244
Engine 0,5 kW 1x240V, Danroll
31
30214
Belt guide, complete
32
30249
Inlet plate, set
33
30212
Nylon guides (set of 5 pcs)
30203
Working capacitor 25μF, Danrol
30204
Starting capacitor 40μF
30209
E-stop complete yellow CXL outside mounting
30213
Catch for undercarriage and for hopper
30247
Start/stop button incl rubber protection
30250
Frictionband for engine
50104
Adapter cable 240V 10A 1 m CEE/DK plug
50105
Adapter cable 240V 10A 1 m CEE/Schuko plug
50320
Rubber protection for start/stop pushbutton CXL
