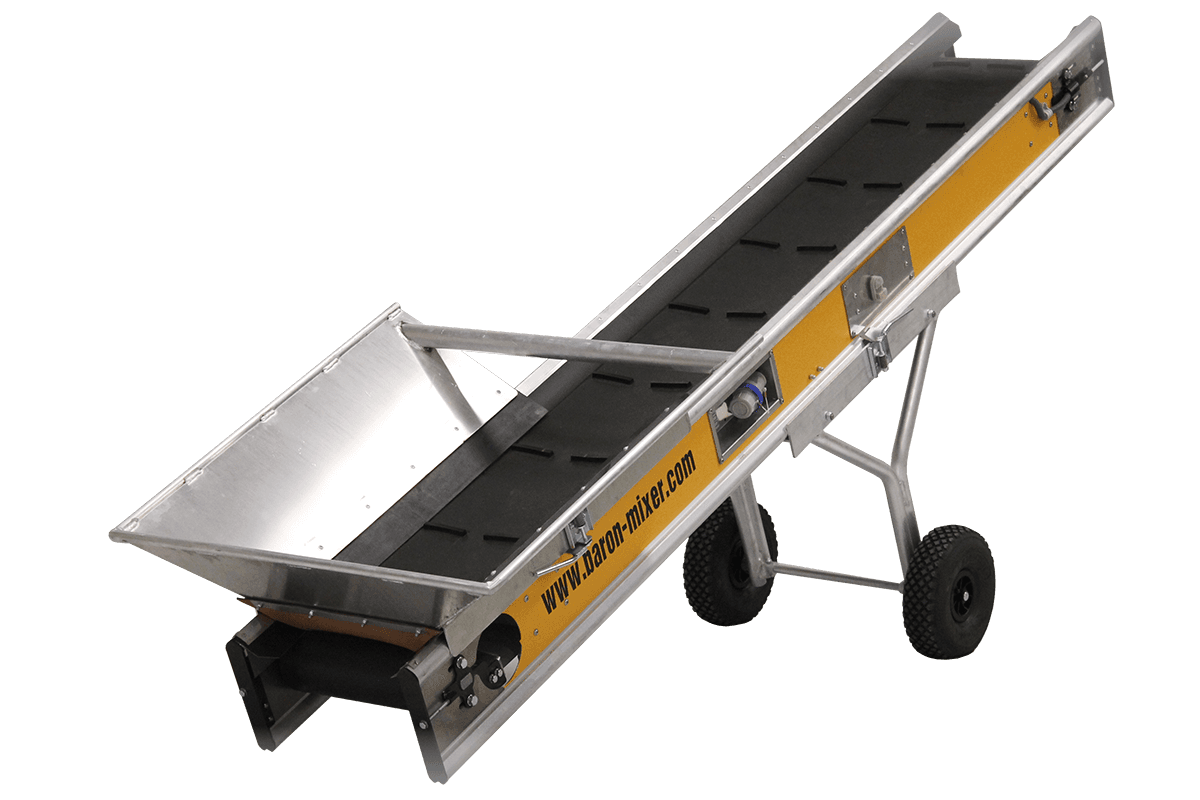

CXL2500

1

30216

Insert plate w/bolt f/drum, right

2

30217

Insert plate w/bolt f/drum, left

3

30222

Adjusting bracket drum, right

4

30223

Adjusting bracket drum, left

5

30221

Adjusting bracket motor, left

6

30218

Insert plate w/bolt f/motor, right

7

30219

Insert plate w/bolt f/motor, right

8

30220

Adjusting bracket motor, right

9

30207

PVC cover at scrubber, set

10

31010

PVC belt 2500

11

31005

Bottom plate 2277 mm with holes and double bend

12

31043

Top profile 2500 mm

13

31014

PVC side protection, 1 m

14

30211

Scrubber, complete

15

31024

Left side profile CXL 2500

16

31020

Right side profile 2500

17

31051

Drum

18

50340

Rubber wheel 20x75 (1 pc)

20

30210

E-stop complete white CXL inside mounting

21

30200

Main switch 25μF 240V

21

31039

Top profile 305 mm

25

31060

Cross member

28

30205

Inlet socket, complete

29

30244

Engine 0,5 kW 1x240V, Danroll

31

30214

Belt guide, complete

32

30249

Inlet plate, set

33

30212

Nylon guides (set of 5 pcs)

30202

Working capacitor 16μF, Rulmeca

30203

Working capacitor 25μF, Danrol

30204

Starting capacitor 40μF

30209

E-stop complete yellow CXL outside mounting

30213

Catch for undercarriage and for hopper

30247

Start/stop button incl rubber protection

30250

Frictionband for engine

50104

Adapter cable 240V 10A 1 m CEE/DK plug

50105

Adapter cable 240V 10A 1 m CEE/Schuko plug

50320

Rubber protection for start/stop pushbutton CXL

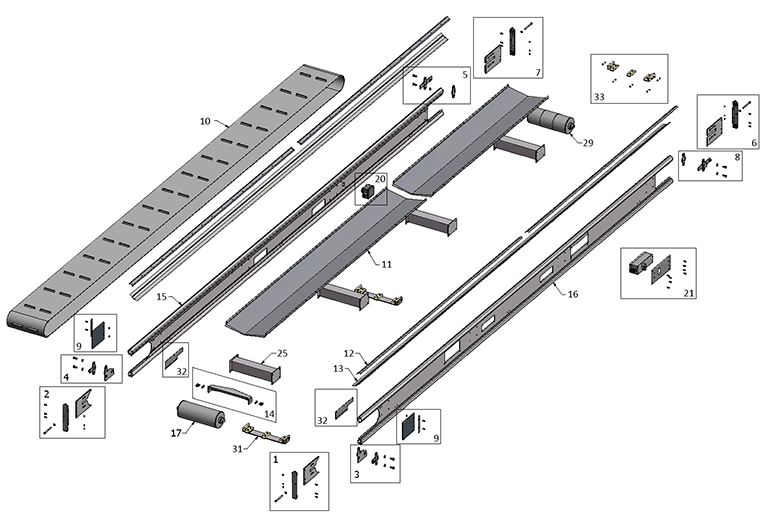

Eksplosionstegning af produktet
